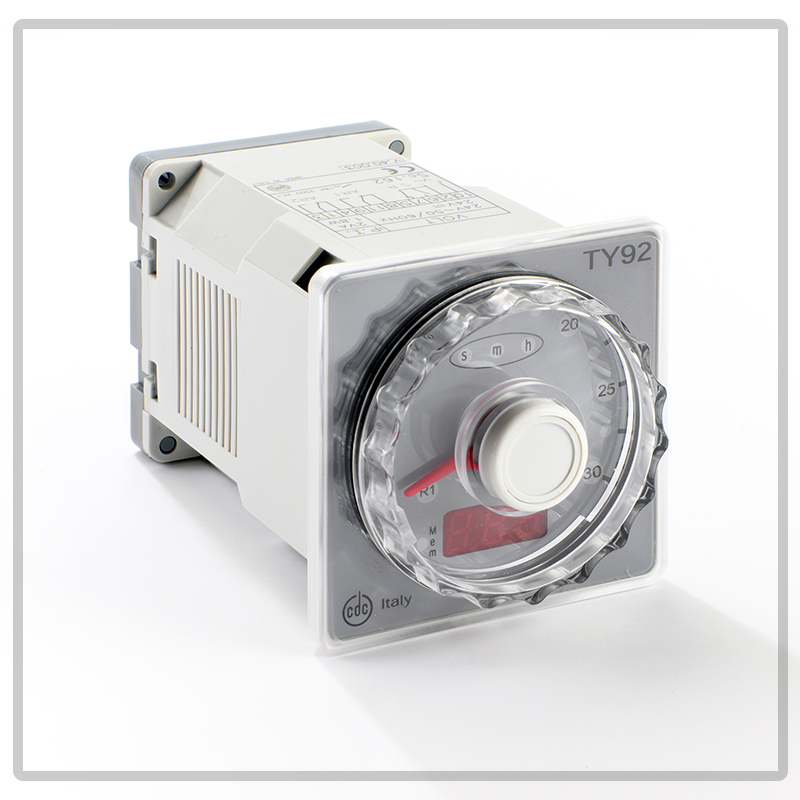

Digital electronic timer with an analogic setting and a direct reading . The timing is visualized by led bar and three digits display (at seven segments).
Through the minidips on the side , it is possible to choose:
A) The relays state with knob sets on time 0
B) One of the 3 available full scale times.
C) One from the 4 available functions (with commands Start and Reset)
D) Memory ON or OFF (memory works only during the counting).
E) End timing Buzzer : ON or OFF
Moreover through the knob it is possible to set the exact time required. The leds on the front point out the relays state, the choiced time unit and the presence of the memory.The electrical wirings will be made through the use of the Undecal socket ( AZ511 ).
