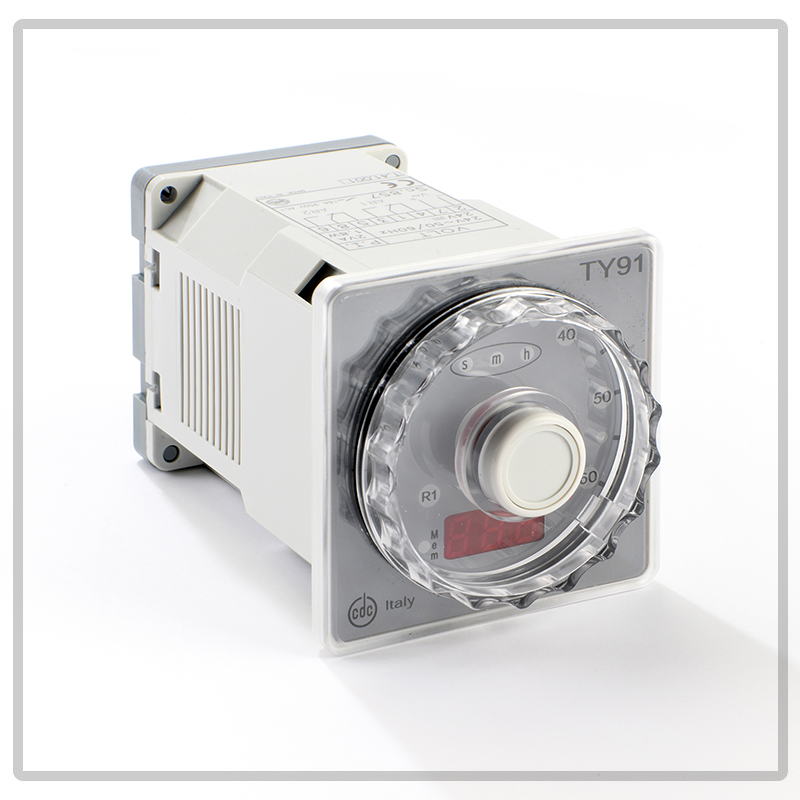

Digital electronic timer with an analogue setting and a direct reading . The timing is visualized by led bar and Three digits display (at seven segments).
Through the side mounted minidips it is possible to choose:
A) The relay state with knob sets on time 0
B) One of the 3 available full scale times.
C) One from the 4 available functions
D) Memory ON or OFF (memory works only during the counting).
E) Buzzer for the end time counting ON or OFF
Moreover through the knob it is possible to set the exact time required. The leds on the front point out the relays state, the choiced time unit and the presence of the memory. The electrical wirings will be made through the use of the octall socket (AZ38 ).
